Falcomm · 17 – 22 GHz
FGN1722
K-band GaN PA for SATCOM and defense, 17–22 GHz at up to 35.09 dBm Psat and 41% PAE, in stock as QFN, bare die, or EVB.
Total
$185.00
$185.00 / unit
✓ In stock · Shipping and tax calculated at checkout
Key features
View full specs ↓- 17 – 22 GHz
- 19 dB gain
- 35.09 dBm Psat
- 41% PAE
- 12 – 28 V supply
- QFN / Die / EVB
What's included
One packaged FGN1722 per unit.
Order details
- SKU
- DEMO-FGN1722-QFN
- Availability
- 929 available
- Shipping
- United States online. Contact Falcomm for international orders.
- Volume
- Orders of 100 units or more are quoted by sales.
Three ways to get FGN1722

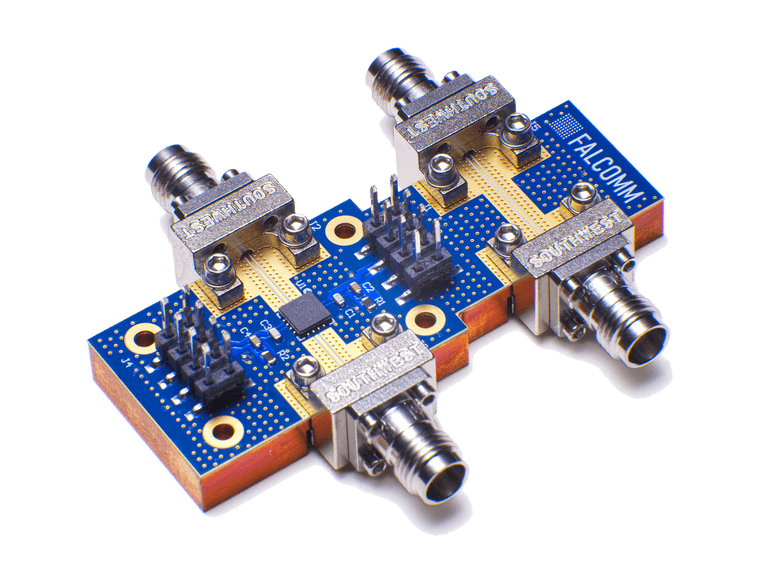

Evaluation kit
Assembled evaluation board, ready for the bench.
$795.00 / unit

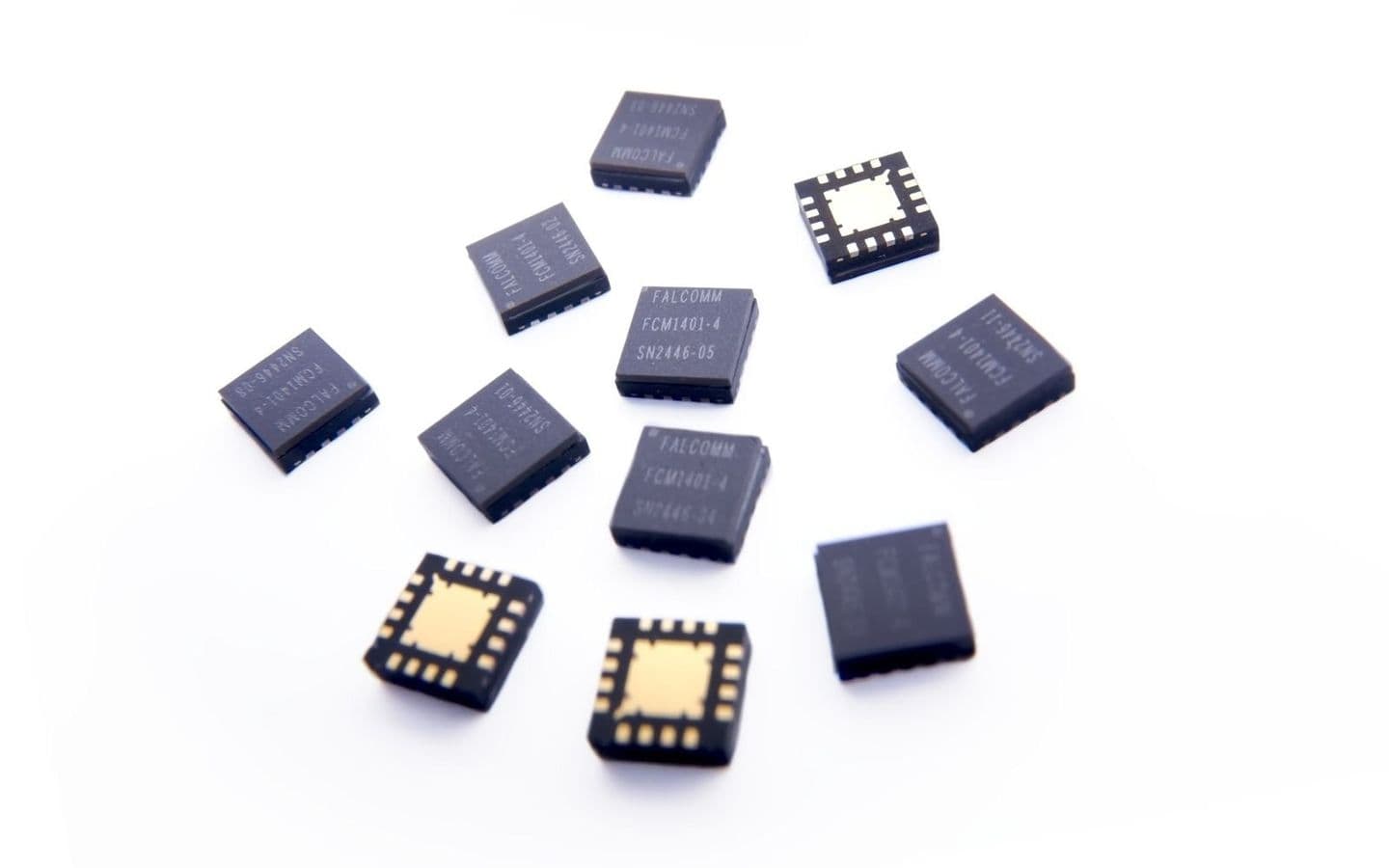

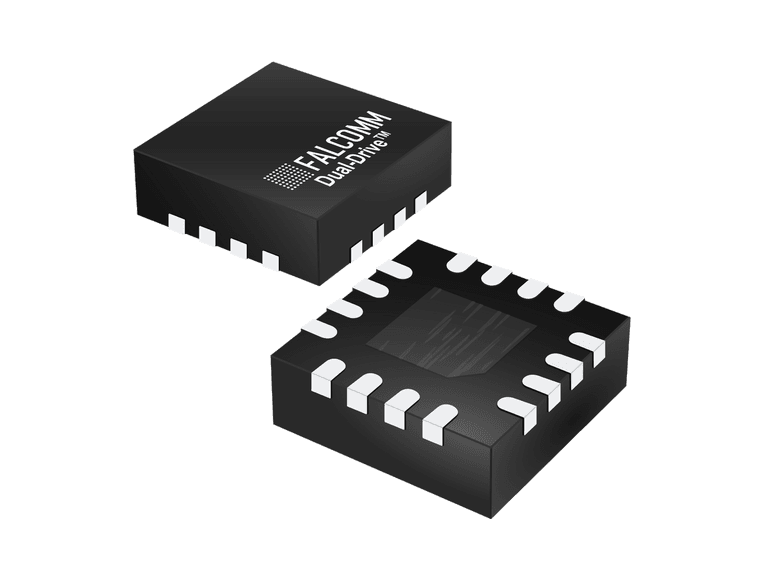

Packaged QFN
Surface-mount package for production boards.
$185.00 / unit

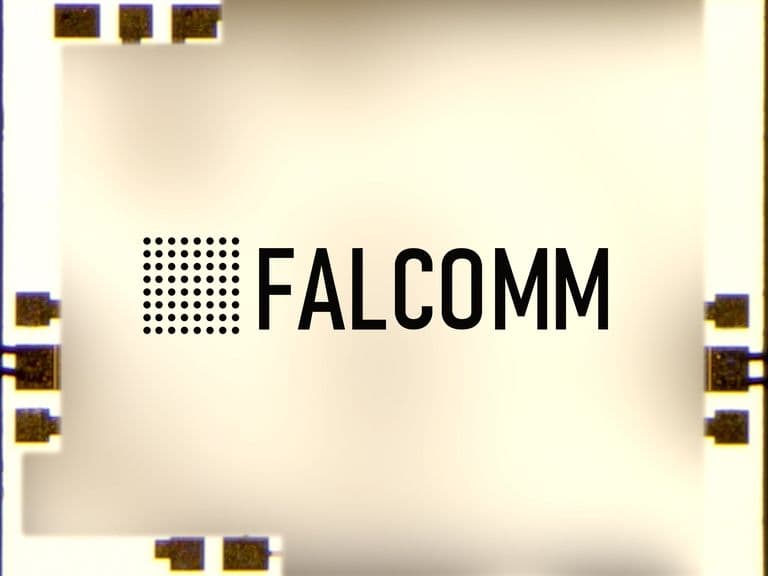

Bare die
Unpackaged die for hybrid and custom assembly.
$125.00 / unit
Product specs
17 – 22 GHz
Frequency range
35.09 dBm
Saturated output power
41%
Power-added efficiency
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Frequency range | 17 | 20 | 22 | GHz |
| Gain | — | 19 | — | dB |
| Psat (OP3dB) | — | 35.09 | — | dBm |
| OP1dB | — | 33.4 | — | dBm |
| PAE max | — | 41 | — | % |
| PAE at OP1dB | — | 35.68 | — | % |
| PAE at 3 dB PBO | — | 24.24 | — | % |
| Supply voltage | 12 | 24 | 28 | V |
| Operating temperature | -40 | — | +85 | °C |
| MTTF at Tmax | — | >1e8 | — | hours at Tmax |
| Tmax | — | 178 | — | °C |
| θjc | — | 16.7 | — | °C/W |
| Output VSWR survivability | — | 6:1 | — | — |
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Package | — | QFN / Die / EVB | — | — |
